Cool-Lite

Cool-Lite

  • Excellent reduce heat transmission while allowing natural light into a building.
  • Uniformly reinforced with glass fibre across the sheet with Distribution Disc Technology for extra strength.
    Top surface is coated with Maxil Shield providing long lasting and more elegance.
  • Bottom surface is coated with DuPont Melinex film for extended working life and profile stability.
    Suitable for a building requiring heat inflow reduction or for air-conditioned building such as:-
    Department store, Supermarket, Gymnasium, Power Plant, Chemical Plant.
  • Series: 2400gsm, 3050gsm, 3200gsm, 3660gsm, 4270gsm & 4880gsm
  • Warranty: 30 years with terms and condition
Request a quote
Download Brochure

LIST OF PRODUCTS

  • Ampelite
  • Amperam
  • D-Lite
All Categories
D-Lite (1)
Ampelite (8)
All (9)
D-Lite (1)
Ampelite (8)
All (9)

Cool-Lite

Cool-Lite
Request a quote

Description

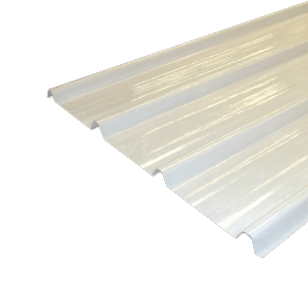

Ampelite’s Cool-Lite Supra translucent roofing and wall cladding sheet White color superbly helps lower heat transmission while allowing natural light into building extra durable ideal for building requiring heat transmission reduction with air-conditioning such as: –

  • Department Store
  • Supermarket
  • Gymnasium



Ampelite’s Cool-Lite Supra translucent roofing and walling are manufactured from premium quality Australian standard heat reduction polyester resin system reinforced with Anti-static high quality glass fibre distributed evenly by using Distribution Disc Technology in compliance with Australia standard AS 4256.3 : 2006 certified by SAI Global License No. SMKB20629 specific weight 2400gsm. Top surface coated with 100 micron thick Maxil Shield providing extra protection against UV and surface erosion. Bottom surface coated with DuPont Melinex Film.

Physical Properties

Description Cool-Lite
Color White
Series 2400gsm ~ 4880gsm
Light Transmission 38%
Heat Transmission 23.5%
Shading Co-efficient 0.27
Top Coating DuPont Melinex Film + Maxil Shield 130 Microns
Bottom Coating DuPont MELINEX® Film
Tensile Strength 100 MPa
Impact Strength 8 Joules
Thermal Expansion 3.0 × 10-⁵ cm/cm°C
Shear Strength 90 MPa
Modulus of Elasticity 5500 MPa
Compressive Strength 135 MPa
Flexural Strength 150 MPa
Specific Gravity 1.45
Thermal Conductivity 0.158 watt/m °C
Water Absorption 0.2% in 24hrs/26°C
Recommended Service Temperature Range -20°C to +110°C

Remark: Shading Co-efficient is the ration of the Solar Heat Gain Co-efficient of a standard 3mm thick single layered glass sheet.

LIST OF PRODUCTS

  • Excellent reduce heat transmission while allowing natural light into a building.
  • Uniformly reinforced with glass fibre across the sheet with Distribution Disc Technology for extra strength.
    Top surface is coated with Maxil Shield providing long lasting and more elegance.
  • Bottom surface is coated with DuPont Melinex film for extended working life and profile stability.
    Suitable for a building requiring heat inflow reduction or for air-conditioned building such as:-
    Department store, Supermarket, Gymnasium, Power Plant, Chemical Plant.
  • Series: 2400gsm, 3050gsm, 3200gsm, 3660gsm, 4270gsm & 4880gsm
  • Warranty: 30 years with terms and condition

Description

Ampelite’s Cool-Lite Supra translucent roofing and wall cladding sheet White color superbly helps lower heat transmission while allowing natural light into building extra durable ideal for building requiring heat transmission reduction with air-conditioning such as: –

  • Department Store
  • Supermarket
  • Gymnasium



Ampelite’s Cool-Lite Supra translucent roofing and walling are manufactured from premium quality Australian standard heat reduction polyester resin system reinforced with Anti-static high quality glass fibre distributed evenly by using Distribution Disc Technology in compliance with Australia standard AS 4256.3 : 2006 certified by SAI Global License No. SMKB20629 specific weight 2400gsm. Top surface coated with 100 micron thick Maxil Shield providing extra protection against UV and surface erosion. Bottom surface coated with DuPont Melinex Film.

Physical Properties

Description Cool-Lite
Color White
Series 2400gsm ~ 4880gsm
Light Transmission 38%
Heat Transmission 23.5%
Shading Co-efficient 0.27
Top Coating DuPont Melinex Film + Maxil Shield 130 Microns
Bottom Coating DuPont MELINEX® Film
Tensile Strength 100 MPa
Impact Strength 8 Joules
Thermal Expansion 3.0 × 10-⁵ cm/cm°C
Shear Strength 90 MPa
Modulus of Elasticity 5500 MPa
Compressive Strength 135 MPa
Flexural Strength 150 MPa
Specific Gravity 1.45
Thermal Conductivity 0.158 watt/m °C
Water Absorption 0.2% in 24hrs/26°C
Recommended Service Temperature Range -20°C to +110°C

Remark: Shading Co-efficient is the ration of the Solar Heat Gain Co-efficient of a standard 3mm thick single layered glass sheet.
