Description

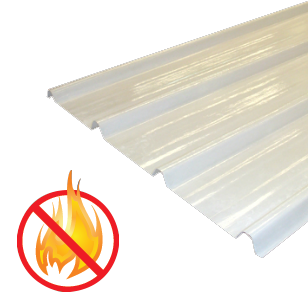

Ampelite SL FIRE RETARDANT translucent roofing and walling are manufactured from Australian Standard certifies, premium quality fire retardant polyester resin reinforced with Anti-static high quality glass fibre distributed evenly by using Distribution Disc Technology. Top surface coated with TopLite® UV film providing UV protection and prevent surface corrosion. Bottom surface coated with Amp MAXINEX® film. Weight shall be 2400 gsm. With 2 coats system technology fire retardant resin, Ampelite SL FIRE RETARDANT allows natural light to enter the building with high safety protection and durability.

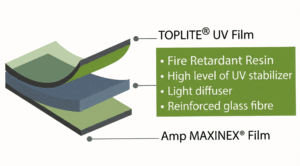

Product Layer Coating

2 COATS SYSTEM : Sheets are produced using superb coating on both top and bottom layers.

Physical Properties

1 Tensile Strength 100 MPa
2 Impact Strength 8 Joules
3 Thermal Expansion 3.0 × 10-⁵ cm/cm°C
4 Shear Strength 90 MPa
5 Modulus of Elasticity 5,500 MPa
6 Compressive Strength 135 MPa
7 Flexural Strength 150 MPa
8 Specific Gravity 1.45
9 Thermal Conductivity 0.038 watt/m K
10 Recommended Service Temperature Range -20°C to 110°C
11 Water Absorption 0.2% in 24 hrs/26 °C
12 ASTM D635 Class CC1
13 UL 94 Class HB
14 BSI 476 Part 6,7 Class 2

Product Standard

Surface Testing according to ASTM G14 with Minimum period 800 hrs.
Fire Retardant Testing BS 476 Part 6 and Part 7. ASTM D35-10, UL-94
Shading Coefficient Testing according to ASTM E903-96 with Shading Coefficient is at 0.44, Light Transmission is at 60%  and Heat Transmission is at 38%
The product produce is certified by Thai Manufacturer according to Australian Standard AS 4256.3:2006
The product is certified by Thai Industrial Standard TIS 612-2549
