Webglas

Webglas

  • Extra strong and trafficable.
  • Reinforce with Ampelite web matt for better strength.
  • Top surface is coated with Maxil Shield providing long lasting elegance.
  • Bottom surface is coated with DuPont Melinex film for extended working life and profile stability.
    Suitable for a building extra durability, safety high chemical resistance or located in high wind
    area such as:-
  • Air Hanger, Airport Buildings, Power Plant, Chemical Plant.
  • Series: 3660gsm
  • Warranty: 30 years with terms and condition
Request a quote
Download Brochure

LIST OF PRODUCTS

  • Ampelite
  • Amperam
  • D-Lite
All Categories
D-Lite (1)
Ampelite (8)
All (9)
D-Lite (1)
Ampelite (8)
All (9)

Webglas

Webglas
Request a quote

Description

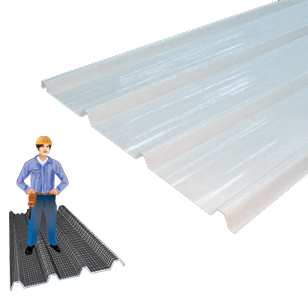

Ampelite’s Webglas translucent roof and wall cladding sheet Ice Clear and Opal colors can safely take foot traffic. Suitable for tall building and strong wind area, specially resistant to chemicals. Ideal for building required natural illumination and extra strong translucent roof sheet such as:-

  • Air Hangar
  • Airport Buildings
  • Chemical Plant
  • Building in strong wind area



Ampelite’s Webglass translucent roofing and walling are manufactured from premium quality Australian standard polyester resin system reinforced with Ampelite web matt in compliant with Australia standard AS 4256.3 : 2006 certified by SAI Global License No. SMKB20629 specific weight 3660gsm. Top surface coated with 100 micron thick Malix Shield providing excellent resistance to UV and surface erosion. Bottom surface coated with DuPoint Melinex Film.

Physical Properties

Description Webglass
Color Ice Clear Opal
Series 3660gsm
Light Transmission 60% 50%
Heat Transmission 53% 42%
Shading Co-efficient 0.61 0.48
Top Coating DuPont Melinex Film + Maxil Shield 130 Microns
Bottom Coating DuPont MELINEX® Film
Tensile Strength 110 MPa
Impact Strength 10 Joules
Thermal Expansion 1.9 × 10-⁵ cm/cm°C
Shear Strength 90 MPa
Modulus of Elasticity 5500 MPa
Compressive Strength 151 MPa
Flexural Strength 181 MPa
Specific Gravity 1.60
Thermal Conductivity 0.158 watt/m °C
Water Absorption 0.2% in 24hrs/26°C
Recommended Service Temperature Range -20°C to +110°C

Remark: Shading Co-efficient is the ration of the Solar Heat Gain Co-efficient of a standard 3mm thick single layered glass sheet.

Additional Information

Special Properties
Ampelite’s WEBGLAS® translucent roof and wall sheets can safely take live loads and resistant to most chemicals

Top Coat
100 microns of MAXIL® Shield and Dupont MELINEX® Film

Fibreglass
Ampelite Web Matt

Bottom Coat
Dupont MELINEX® Film

Applications
Ampelite’s WEBGLAS® is suitable for tall building and high wind
– Air Hangar
– Airport buildings
– Power Plant
– Chemical Plant

The Achievable Standard
AS 4256.3:2006

The Certified Quality
ISO 9001:2008

LIST OF PRODUCTS

  • Extra strong and trafficable.
  • Reinforce with Ampelite web matt for better strength.
  • Top surface is coated with Maxil Shield providing long lasting elegance.
  • Bottom surface is coated with DuPont Melinex film for extended working life and profile stability.
    Suitable for a building extra durability, safety high chemical resistance or located in high wind
    area such as:-
  • Air Hanger, Airport Buildings, Power Plant, Chemical Plant.
  • Series: 3660gsm
  • Warranty: 30 years with terms and condition

Description

Ampelite’s Webglas translucent roof and wall cladding sheet Ice Clear and Opal colors can safely take foot traffic. Suitable for tall building and strong wind area, specially resistant to chemicals. Ideal for building required natural illumination and extra strong translucent roof sheet such as:-

  • Air Hangar
  • Airport Buildings
  • Chemical Plant
  • Building in strong wind area



Ampelite’s Webglass translucent roofing and walling are manufactured from premium quality Australian standard polyester resin system reinforced with Ampelite web matt in compliant with Australia standard AS 4256.3 : 2006 certified by SAI Global License No. SMKB20629 specific weight 3660gsm. Top surface coated with 100 micron thick Malix Shield providing excellent resistance to UV and surface erosion. Bottom surface coated with DuPoint Melinex Film.

Physical Properties

Description Webglass
Color Ice Clear Opal
Series 3660gsm
Light Transmission 60% 50%
Heat Transmission 53% 42%
Shading Co-efficient 0.61 0.48
Top Coating DuPont Melinex Film + Maxil Shield 130 Microns
Bottom Coating DuPont MELINEX® Film
Tensile Strength 110 MPa
Impact Strength 10 Joules
Thermal Expansion 1.9 × 10-⁵ cm/cm°C
Shear Strength 90 MPa
Modulus of Elasticity 5500 MPa
Compressive Strength 151 MPa
Flexural Strength 181 MPa
Specific Gravity 1.60
Thermal Conductivity 0.158 watt/m °C
Water Absorption 0.2% in 24hrs/26°C
Recommended Service Temperature Range -20°C to +110°C

Remark: Shading Co-efficient is the ration of the Solar Heat Gain Co-efficient of a standard 3mm thick single layered glass sheet.

Additional Information

Special Properties
Ampelite’s WEBGLAS® translucent roof and wall sheets can safely take live loads and resistant to most chemicals

Top Coat
100 microns of MAXIL® Shield and Dupont MELINEX® Film

Fibreglass
Ampelite Web Matt

Bottom Coat
Dupont MELINEX® Film

Applications
Ampelite’s WEBGLAS® is suitable for tall building and high wind
– Air Hangar
– Airport buildings
– Power Plant
– Chemical Plant

The Achievable Standard
AS 4256.3:2006

The Certified Quality
ISO 9001:2008
